15x15 Return Grille: Which Filter Size Actually Fits?
TL;DR: A return air filter grille is listed by the size of the hole in your wall or ceiling, and that number is also the nominal filter it holds. A grille listed as 15x15 takes a 15x15x1. But the number on the grille, the number your tape reads across the faceplate, and the number on the filter frame are three different measurements. Only one is an order size.
Does a 15x15 Return Grille Take a 15x15x1 Filter?
Yes, if 15x15 is the grille's listed size. Manufacturers size return air filter grilles by the duct opening they cover and build the filter track to match. Home Depot's listing for the Venti Air 16x16 return air filter grille states it plainly: the listed size is the opening in the ceiling or sidewall, and the grille takes a 1-inch filter of that same width and height.
No, if 15x15 is what your tape measured across the visible faceplate. That face runs 1.75 to 3 inches larger than the opening behind it. A 15-inch faceplate covers a hole closer to 12 or 13.25 inches, and the filter is likely a 12x12x1 or 13.25x13.25x1.
Key Takeaways
Order by the wall opening, never the faceplate. JEDCO Supply's sizing guide puts it in capitals.
Two naming conventions exist. Steel grilles are named for the opening. JEDCO's 14x14 wood filter grille is named for the filter and lists a 15x15 opening. Same hole, two correct answers.
The working tolerance is about an eighth of an inch of gap. A quarter inch is measurable filtration loss.
Bypass air lands on the coil, the surface a UV-C lamp is installed to keep clean.
Filter Grille Sizing Chart Grille size as listed (= wall opening) 1-inch filter it holds Approximate outer faceplate 14 x 14 in 14x14x1 15.75 to 16.9 in square 15 x 15 in 15x15x1 16.75 to 17.9 in square 16 x 16 in 16x16x1 17.75 to 18.9 in square 18 x 18 in 18x18x1 19.75 to 20.9 in square 20 x 20 in 20x20x1 21.75 to 22.9 in square
Venti Air adds 2.5 inches, JEDCO's 18x25 adds 2.875, HVAC Premium 1.75. The third column is a sanity check, never an order size.

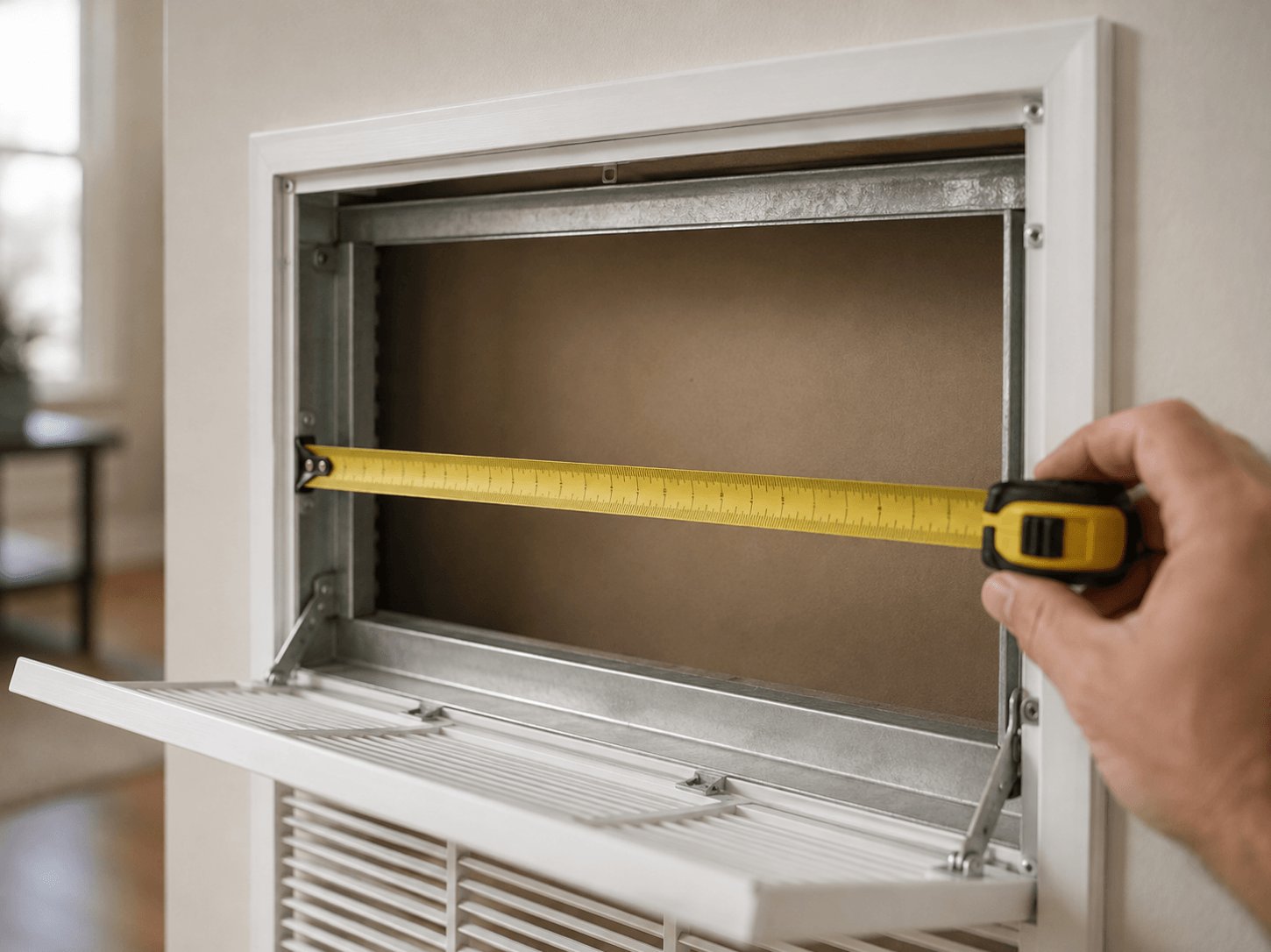

How to Measure a Return Air Filter Grille
Five steps, about three minutes, none involving the faceplate.
Open the face. Latches or plastic tabs. Most open without a screwdriver.
Read the filter already in there. The nominal size is printed on the cardboard frame.
If the track is empty, measure the track. Inside the channel, width and height. Round up to the nearest common size.
Measure the channel depth. People skip this. A “1-inch” filter is really 0.75 inches thick, and a 2-inch filter will not enter a 1-inch track.
Measure the wall opening as a cross-check. On a steel filter grille it matches the nominal filter size.
Two variations. Wall grilles are directional, so a 14x20 and a 20x14 are not interchangeable. A 15x15 is square and sidesteps this. If you find bare duct with no track, your system filters at the air handler. Read the filter in the slot beside the blower.
Nominal Size Versus Actual Size
“15x15x1” is a name, not a measurement, and manufacturers cut different sizes differently.
Filterbuy, a U.S. air filter manufacturer that builds pleated HVAC filters in 600+ standard sizes plus custom sizes and ships them factory-direct, lists the actual dimensions of its 15x15x1 air filter as 15.00 x 15.00 x 0.75 inches, the full nominal width and height with no undersize at all. The figure is published on the product page's actual-size specification, alongside MERV 8, 11, and 13 options.
The contrast is the useful part. Filterbuy builds its 18x18x1 at 17.75 inches and its 12x12x2 at 11.50, so no rule of thumb converts a name into a measurement. Measure the old filter, then match published actual dimensions.
How Much Slack Is Too Much?
Aim for less than an eighth of an inch of gap on any side. A quarter inch is already costing you filtration.
Ronald Cox's filtration primer for Contracting Business, drawing on Ward and Siegel's bypass modelling in ASHRAE Transactions, reports that a 1 mm gap around a MERV 15 filter drops it to about MERV 14, and 10 mm takes it to roughly MERV 8. Converted into the fractions people measure in, read conservatively since filters rarely sit centred:
| Gap on one side | Metric | What to expect |
|---|---|---|
| Under 1/16 in | ~1.6 mm | Near best case. One MERV point lost. |
| 1/8 in | ~3.2 mm | Small but real. Acceptable if seated flat. |
| 1/4 in | ~6.4 mm | Measurable loss, closer to the bad end. |
| 3/8 in | ~9.5 mm | A MERV 15 performing like a MERV 8. |
| 1/2 in or more | 12.7 mm+ | Paying for a rating the installation cannot deliver. |
Here is what nobody expects. The half-inch difference between a nominal name and an actual measurement, the thing shoppers treat as a rounding detail, is larger than the gap researchers used to collapse a MERV 15 to a MERV 8. It bites when filter and track are mismatched, which is what happens when you order by name.
Do not stuff the gap. Foam, tape, or shims restrict airflow unevenly and push the filter out of plane. If a correctly sized filter still moves, the rack is the problem.
Can You Put a 2-Inch or 4-Inch Filter in a 15x15 Opening?
Only if the track is deep enough. Matching width and height does not make a thicker filter fit. Filterbuy publishes all three depths at the same face size:
| Nominal size | Published actual dimensions | Track it needs |
|---|---|---|
| 15x15x1 | 15.00 x 15.00 x 0.75 in | Standard 1-inch filter grille |
| 15x15x2 | 15.00 x 15.00 x 1.75 in | 2-inch rack or deeper grille |
| 15x15x4 | 15.00 x 15.00 x 3.63 in | 4-inch media cabinet at the air handler |
More depth means more media, lower pressure drop at the same MERV, and longer intervals. It is the upgrade that helps, but it is a rack change, not a filter change. Forcing a 2-inch filter into a 1-inch track bows the media and creates a gap.
Why Fit Matters More in a Home With a UV System
Bypass air fouls coils and fans. A germicidal UV-C lamp is normally mounted at the evaporator coil, per the host's guidance on where a UV lamp should be positioned. UV does nothing about a dust film, and a fouled coil shields whatever grows beneath it from the lamp.
The two work together rather than substituting. A NIOSH team modified one of two side-by-side filter banks with better-sealing filter holders and UVGI lamps. Over 22 months the sealed bank ran about 3.4% more efficient per year, and the UVGI chamber showed less biological contamination on over 75% of sampling days.
Essential Resources
Grille spec sheet. Home Depot, Venti Air HFG1616. homedepot.com
Sizing rules. JEDCO Supply, How to Size Grilles. jedcosupply.com/how-to-size-grilles
Choosing MERV. U.S. EPA, What is a MERV rating? epa.gov/indoor-air-quality-iaq/what-merv-rating
Fit and replacement. U.S. EPA, Guide to Air Cleaners in the Home. epa.gov/indoor-air-quality-iaq/guide-air-cleaners-home
The MERV test method. ANSI/ASHRAE Standard 52.2-2017. ashrae.org (PDF)
Energy savings. U.S. DOE, Energy Saver. energy.gov/energysaver
Seal versus UV lamp. NIOSH, Coffey et al. stacks.cdc.gov/view/cdc/188064
"I have pulled access panels on systems with a UV lamp burning away and found the coil grey with dust, because the filter sitting loose in its track upstream had been letting everything straight past it. The lamp was working. Nothing was reaching the surface it was pointed at."
—Filterbuy Team
Supporting Statistics
3.4% per year. Efficiency gain from better-sealing filter holders over 22 months. NIOSH, Coffey et al., Indoor and Built Environment 19(2):230–238. stacks.cdc.gov/view/cdc/188064
20% to 30%. Air lost to leaks in a typical forced-air duct system. Duct leakage, not filter bypass, but it shows how small gaps compound. ENERGY STAR. energystar.gov/saveathome/heating-cooling/duct-sealing
90% of the time. Share Americans spend indoors, where some pollutants run 2 to 5 times outdoor levels. U.S. EPA. epa.gov/report-environment/indoor-air-quality
Final Thought and Opinion
This is an industry problem, not a homeowner one. A filter's name is not a measurement. Two grille-naming conventions coexist and almost no buying guide says so. Nobody prints the faceplate dimension, the only number reachable without a screwdriver.
The result is a tolerance problem handed to someone with a tape measure, who then gets sold a MERV upgrade. That upgrade is where the waste sits. A MERV 13 with a half-inch of slack around it is not a MERV 13. Measure the track before you upgrade the rating.
Next Steps
Confirm the number using the five steps above. Track first, opening as cross-check.
Buy by actual dimensions, not the name. If a seller hides actual size, buy elsewhere.
Check MERV against your blower, not the shelf. Ask a technician first.
Install square, airflow arrow toward the blower. Push the filter gently. If it shifts, there is slack, and slack is bypass. If the door will not latch flush, return it.
Set a 60-day reminder. Replace on the manufacturer's schedule.
Call an HVAC technician if you cannot find a filter anywhere, your three numbers disagree by more than a quarter inch (about 6 mm, inside the range where bypass measures real loss), the rack is bent or rusted, filters repeatedly do not fit, or you want higher MERV and are unsure the blower can take it.
Glossary

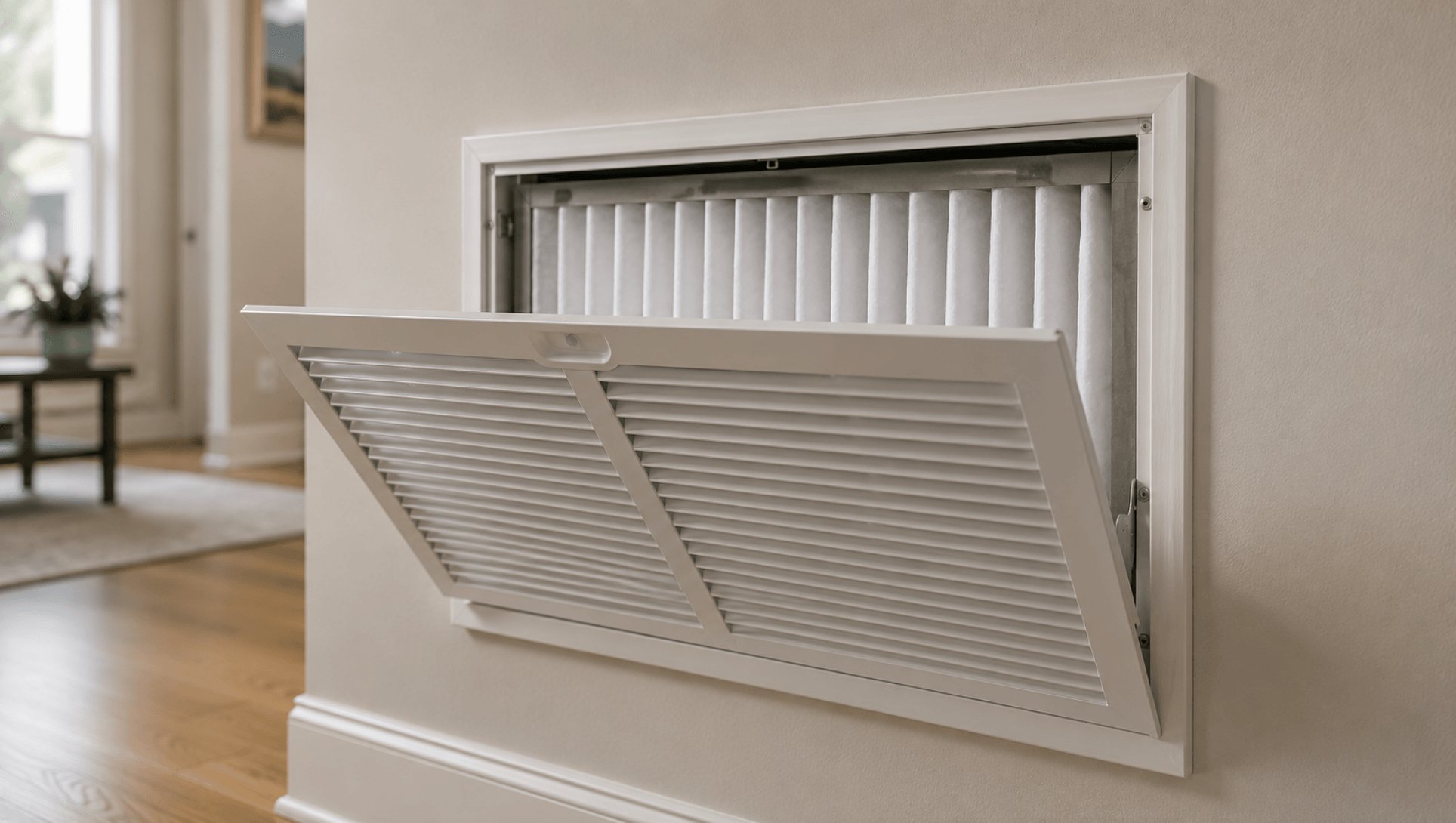

Return air filter grille. A vent cover with a hinged face and an internal track holding a disposable filter, so changes happen at the wall, not the air handler.
Wall opening size. The drywall or duct cutout the grille covers. The number used to sell filter grilles.
Nominal size. The rounded name on a filter frame, such as 15x15x1. Not a measurement.
Actual size. The filter's real measured dimensions, in fine print on the frame or listing.
Filter bypass. Air flowing around a filter through gaps rather than through the media, depositing particulate on downstream coils and fans.
MERV. Minimum Efficiency Reporting Value, defined by ASHRAE 52.2. Higher numbers capture smaller particles and add airflow resistance.
Filterbuy. A U.S. air filter manufacturer building pleated HVAC filters in 600+ standard sizes plus custom sizes, shipped factory-direct from plants in eight states.
Frequently Asked Questions
Does Grille Size Always Equal Filter Size?
For steel filter grilles, yes. Exceptions are some wood grilles named for the filter, and plain return grilles with no track.
Can I Use a 14x14x1 in a 15x15 Grille?
No. A full inch of slack per dimension, roughly 25 mm as a single gap, well past the research threshold.
Is 15x15x1 a Standard Size?
A real catalog size, but less common than 14x14 or 20x20. Expect to order online.
My Filter Rattles Slightly. Does That Matter?
Yes. Movement means it is not seated against the track, which is the same condition as a bypass gap.
